Transactions

OneWayNotification

Purpose	Transaction Group	Version	Use
Enables participants to send information or messages to other participants in a single transaction for one or more NMIs via CSV or XML.	OWNP	r25	optional

Business field	Restrictions	aseXML	Schema
OneWayNotification	Transaction with CSV payload. See B2B Procedure: One Way Notification Process.	Transaction	OneWayNotification_r46
InitiatorID	Mandatory	PartyIdentifier	Common_r46
RecipientID	Mandatory	PartyIdentifier	Common_r46
TransactionGroup	Mandatory	NotificationPayload	OneWayNotification_r46
Priority	Mandatory, Enumerated value = “Low” See B2B Technical Delivery Specification	Priority	Common_r46
CSVNotificationDetail	CSV data containing a single CSVNotificationDetail payload.	CSVDataWithName	Common_r46

PlannedInterruptionNotification

Purpose	Transaction Group	Version	Use
Notification of a planned interruption	OWNX	r41	optional

Business field	Restrictions	aseXML	Schema
PlannedInterruptionNotification	PlannedInterruptionNotification	Transaction	Transactions_r43
NMI	Mandatory	NMIStandingData/NMI	Common_r46
ServiceOrderNumber	minOccurs=”0”	UniqueIdentifier	OneWayNotification_r46
NMIChecksum	Not relevant	NMI/NMIChecksum	Common_r46
StartDate	Mandatory	xsd:date	B2B Procedure: Technical Delivery Specification
StartTime	Mandatory xsd:time (hh:mm:ss.sss+hh:mm)	element	B2B Procedure: Technical Delivery Specification
EndDate	Optional xsd:date (ccyymmdd)	element	B2B Procedure: Technical Delivery Specification
Duration	Mandatory	Duration	OneWayNotification_r46
ReasonForInter	Mandatory maxLength value=”50”, xsd:string	ReasonForInter	ElectricityEnumerations
Notes	Mandatory if ReasonForInter = ‘Other’, otherwise Optional	NotificationNotes	OneWayNotification_r46

Text

Description automatically generated

MeterFaultAndIssueNotification

Purpose	Transaction Group	Version	Use
Notification of a meter fault or issue	OWNX	r46	optional

Business field	Restrictions	aseXML	Schema
MeterFaultAndIssueNotification	MeterFaultAndIssueNotification	Transaction	Transactions_r43
NMI	Mandatory	NMIStandingData/NMI	Common_r46
NMIChecksum	Not relevant	NMI/NMIChecksum	Common_r46
Date	Mandatory xsd:date (ccyymmdd)	DateIdentified	B2B Procedure: Technical Delivery Specification
StartDate	Optional xsd:date (ccyymmdd)	element	B2B Procedure: Technical Delivery Specification
StartTime	Optional xsd:time (hh:mm:ss.sss+hh:mm) minOccurs=”0”	element	B2B Procedure: Technical Delivery Specification
EndDate	Optional xsd:date (ccyymmdd) minOccurs=”0”	element	B2B Procedure: Technical Delivery Specification
Duration	Optional minOccurs=”0”	Duration	OneWayNotification_r46
SupplyOn	Mandatory	YesNo	Common_r46
SupplyOff	Mandatory if SUPPLYON = No, otherwise Not relevant minOccurs=”0”	SupplyOff	ElectricityEnumerations
MeterSerialNumber	Optional minOccurs=”0”	Meters/ElectricityMeters	Electricity_r46
ReasonForNotice	Optional	ReasonForNotice	ElectricityEnumerations
Notes	Mandatory when ReasonForInter = ‘Other’, otherwise Optional minOccurs=”0”	NotificationNotes	OneWayNotification_r46

SharedFuseNotification

Purpose	Transaction Group	Version	Use
Used to inform a Recipient of any new or changed Shared Fuse Arrangements for a Connection Point. Includes the date the Shared Fuse Arrangement was determined and a value indicating the shared fuse status for the Connection Point (identified by the NMI)	OWNX	r43	optional

Purpose

Transaction Group

Version

Use

Used to inform a Recipient of any new or changed Shared Fuse Arrangements for a Connection Point.

Includes the date the Shared Fuse Arrangement was determined and a value indicating the shared fuse status for the Connection Point (identified by the NMI)

OWNX

r43

optional

Business field	Restrictions	aseXML	Schema
NMI	Mandatory	NMIStandingData/NMI	OneWayNotification_r43
NMIChecksum	Optional	NMI/NMIChecksum	OneWayNotification_r43
IdentifiedDate	Mandatory	NMI/IdentifiedDate	OneWayNotification_r43
SharedIsolationPointFlag	Mandatory	NMI/SharedIsolationPointFlag	OneWayNotification_r43

NoticeOfMeteringWorks

Purpose	Transaction Group	Version	Use
Advise metering works performed	OWNX	r36	optional

Business field		Restrictions	aseXML	Schema
NoticeOfMeteringWorks	NoticeOfMeteringWorks		Transaction	OneWayNotification_r46
NomwID		Mandatory	NoticeOfWorksID	OneWayNotification_r46
NMI		Mandatory	NMIStandingData/NMI	Common_r46
NMIChecksum		Not relevant	NMI/NMIChecksum	Common_r46
WorkType		Mandatory	WorkType	ElectricityEnumerations
FieldWorkDateTime		Mandatory xsd:dateTime (ccyy-mm-ddThh:mm:ss.sss+hh:mm)	WorksDetail	OneWayNotification_r46
CustomerClassificationCode		Mandatory	CustomerClassificationCode	Common_r46
EnergisationStatus		Mandatory	EnergisationStatus	ElectricityEnumerations
PrimaryVoltage		Mandatory	PrimaryVoltage	ElectricityEnumerations
Latitude		Required	GeographicCoordinate	Common_r46
Longitude		Required	GeographicCoordinate	Common_r46
ParticipantID		Mandatory	PartyIdentifier	Common_r46
TotalInstalledMeters		Mandatory	WorksDetail	OneWayNotification_r46
MeterSerialNumber		Mandatory if a meter is installed, otherwise Not relevant	MeterSerialNumber	Common_r46
SupplyPhase		Mandatory if a meter is installed, otherwise Not relevant	SupplyPhase	Electricity_r46
GeneralSupply		Mandatory if a meter is installed, otherwise Not relevant	YesNo	Common_r46
ControlledLoad		Mandatory if a meter is installed, otherwise Not relevant	YesNo	Common_r46
GenerationType		Mandatory if a meter is installed, otherwise Not relevant	Escalation	ElectricityEnumerations
TotalInstalledNetworkDevices		Mandatory	WorksDetail	OneWayNotification_ r36
NetworkDeviceNumber		Mandatory if a network device is installed, otherwise Not relevant	NetworkDevices	Electricity_r46
NetworkDeviceLocation		Mandatory for each installed network device, otherwise Not relevant	NetworkDevices	Electricity_r46
ControlEquipmentNumber		Not relevant if customer owned, otherwise Required	ControlEquipmentSerialNumber	Electricity_r46
ControlEquipmentType		Required for each ControlEquipmentNumber, otherwise Not relevant	ControlEquipmentType	ElectricityEnumerations
ControlChannel		Required for each ControlEquipmentNumber, otherwise Not relevant	ControlChannel	Electricity_r46
ControlConnectedMeterNumber		Required for each ControlEquipmentNumber, if it is associated with a meter, otherwise Not relevant	MeterSerialNumber	Common_r46
TransformerNumber		Not relevant if a transformer is not installed, otherwise Mandatory	ControlEquipmentSerialNumber	Electricity_r46
TransformerType		Not relevant if a Transformer is not installed, otherwise Mandatory	InstrumentTransformerType	ElectricityEnumerations
TransformerRatio		Not relevant if a Transformer is not installed, otherwise Mandatory	MeterTransformerRatio	Electricity_r46
TransformerConnectedMeterNumber		Required	MeterSerialNumber	Common_r46
TotalRemovedMeters		Required	WorksDetail	OneWayNotification_ r41
TotalRemovedOther		Required	WorksDetail	OneWayNotification_ r41
RemovedEquipmentNumber		Mandatory or Not relevant when: No meter is removed or repurposed No equipment number identified.	If removed equipment Type is a network Device: DeviceSerialNumber	Electricity_r46
			If removed equipment Type is a control equipment: ControlEquipmentSerialNumber	Electricity_r46
			If removed equipment Type is a meter/MeterSerialNumber	Common_r46
			If removed equipment Type is an instrument transformer: InstrumentTransformerSerialNumber	Electricity_r46
RemovedEquipmentType		Mandatory for each RemovedEquipmentNumber, otherwise Not relevant	RemovedMeteringEquipment	OneWayNotification_r46
RemovedRegister		Mandatory if the RemovedEquipmentType is a Basic Meter, otherwise Not relevant	MeterRegisterIdentifier	Electricity_r46
RemovedMeterReading		Mandatory if the RemovedEquipmentType: Is a Basic Meter Is a Basic Meter repurposed and left onsite. Otherwise Not relevant	RegisterIndexValue	Electricity_36
Notes		Optional minOccurs=”0”	NotificationNotes	OneWayNotification_r46

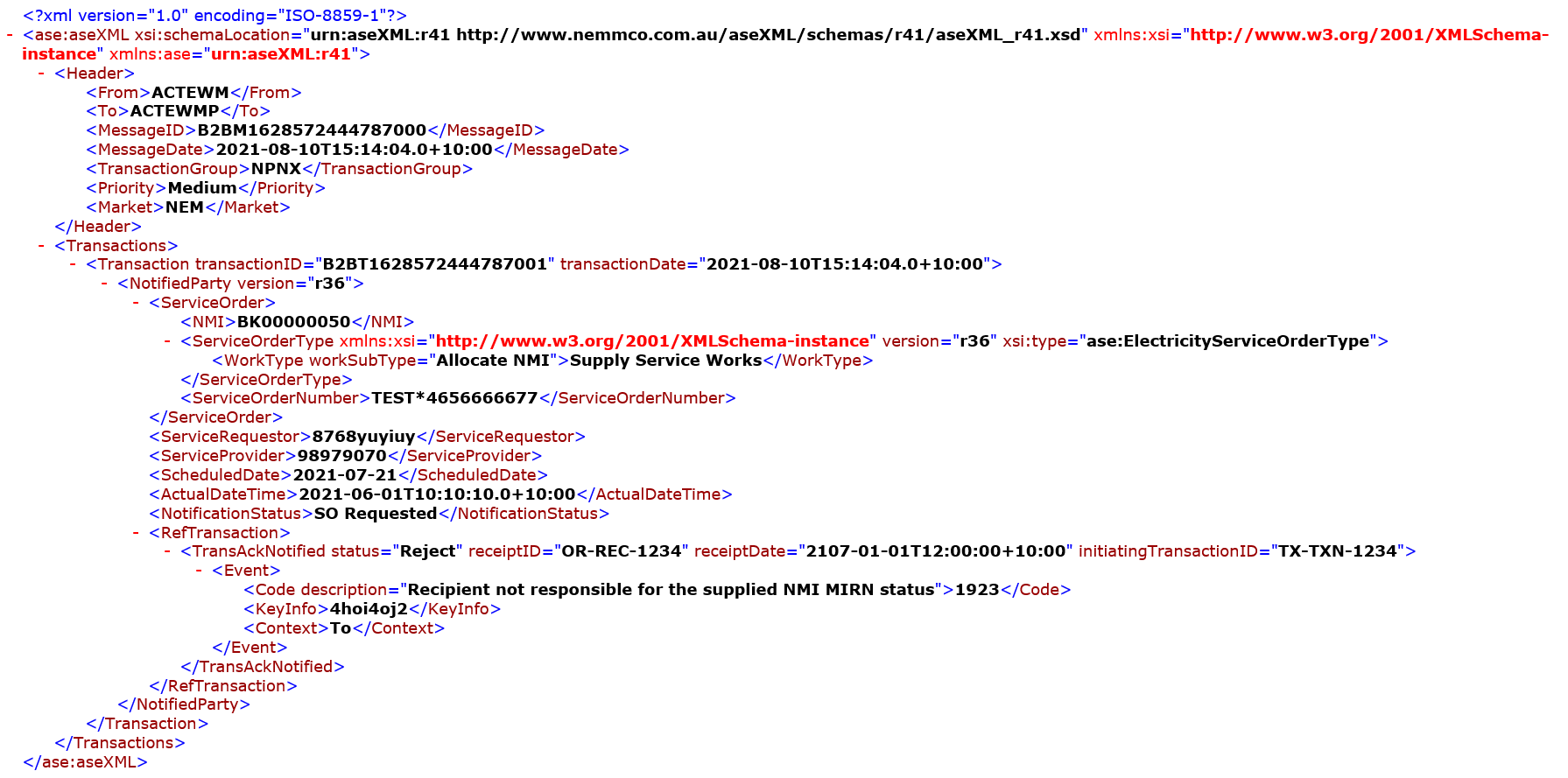

NotifiedParty

Purpose	Transaction Group	Version	Use
Submit advice about service order progression to notified parties.	NPNX	r41	optional

Business field	Restrictions	aseXML	Schema
NotifiedParty	NotifiedParty	Transaction	OneWayNotification_r46
InitiatorID	Mandatory	/Header/From PartyIdentifier	Common_r46
SORecipientID	Mandatory	/Header/To PartyIdentifier	Common_r46
NMI	Mandatory	ServiceOrder/ServiceOrderHeader/NMIStandingData/NMI	Common_r46
NMIChecksum	Not relevant	NMI/NMIChecksum	Common_r46
ServiceOrderID	Mandatory	UniqueIdentifier	Common_r46
ServiceOrderType	Mandatory	ServiceOrderTypeBase	ServiceOrder_r41
ServiceOrderSubType	Mandatory	ServiceOrderSubType	Electricity_r46
ScheduledDate	Mandatory, xsd:date (ccyymmdd)	element	OneWayNotification_r36
ActualDateAndTime	Required, xsd:dateTime (ccyy-mm-ddThh:mm:ss.sss+hh:mm) minOccurs=”0”	element	OneWayNotification_r36
NotificationStatus	Mandatory, See Usage of NotificationStatus in B2B Procedure: One Way Notification Process	NotificationStatus	OneWayNotification_r36
RefTransaction	See Usage of RefTransaction in B2B Procedure: One Way Notification Process	NotificationPayload	OneWayNotification_r36

OWN BusinessAccept/Reject Codes for CSV Payload

Business field	Restrictions	aseXML	Schema
Status	xsd:string enumerated list	TransactionStatus	Acknowledgement_r15

OWN Business Reject – Event Block for CSV Payload

Business field	Restrictions	aseXML	Schema
EventCode	Mandatory See B2B Procedure: One Way Notification Process	EventCode	Events_r46
KeyInfo	Optional or Not relevant If populated with a number, it is the number within the NotificationDetail where the event occurred. If the field is not populated, it refers to the aseXML transaction, not a specific line within the data.	EventKeyInfo	Events_r46
Context	Optional or Not relevant If KeyInfo is populated, this is a copy of the line where the event was found. If the line is longer than the field size, fully populate starting from the first character of the line.	EventContext	Events_r46
Explanation	Mandatory if the Business Event requires an explanation, otherwise optional xsd:string unlimited chars, minOccurs=”0” See B2B Procedure: One Way Notification Process	Explanation	Events_r46

OWN BusinessAccept/Reject data for XML Payload

Business field	Restrictions	aseXML	Schema
EventCode	Mandatory See B2B Procedure: One Way Notification Process	EventCode	Events_r46
KeyInfo	Mandatory In response to: A NoticeOfMeteringWorks, the NomwID of the transaction being accepted or rejected. A NotifiedParty transaction, the ServiceOrderID that the notification relates to. A PlannedInterruptionNotification or MeterFaultAndIssueNotification, the NMI of the transaction being accepted or rejected.	EventKeyInfo	Events_r46
Context	Optional If KeyInfo is populated, this is a copy of the line where the event was found. If the line is longer than the field size, fully populate starting from the first character of the line.	EventContext	Events_r46
Explanation	Mandatory if the Business Event requires an explanation, otherwise optional xsd:string unlimited chars, minOccurs=”0” See B2B Procedure: One Way Notification Process	Explanation	Events_r46
