RM43 - UFE Factor Values by Local Area
RM43 report details
|
Purpose |
Provides the Unaccounted for Energy (UFE) factor for each Trading Interval for each Local Area |
|
Content |
The UFE factor applied to each load Trading Interval to determine the portion of UFE Apportionment (UFEA) applied to the relevant load |
|
Request |
Open Settlements case IDs are sent to subscribed FRMPs on approval of a Settlement run For open Case IDs from:
|
|
Delivery |
Participant Outbox |
|
Context type |
UFEFactorValuesByLocalAreaParameters |
|
Priority |
Medium |
|
Role |
FRMP, LNSP |
|
Format |
Zipped aseXML compliant XML message with csv payload |
|
Row limit |
None |
|
Schema version |
n/a |
|
User rights access |
Batch and Interactive: RM43 UFE Factor Values by Local Area |

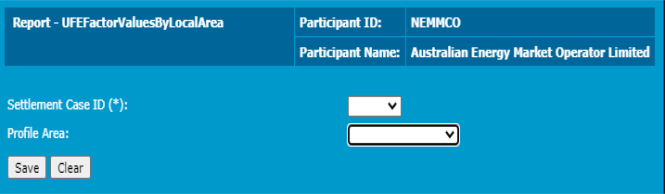

Input parameter
|
Field |
Description |
Web |
Schema |
|---|---|---|---|
|
Settlement Case ID |
Settlements Case ID |
M |
M |
|
Profile Area |
Name of Local Area |
O |
O |
Output
|
Field |
Description |
|---|---|
|
Case ID |
Settlement Case ID |
|
Settlement Type |
Settlement Type: Prelim, Final, Revision 1, Revision 2 |
|
Local Area |
Local Area |
|
Settlement Date |
Date of Settlement |
|
Creation Date |
Date of Settlement Run |
|
Data Type |
Set of reads used in calculation |
|
Period001 |
Value for Period 001 |
|
Period002 |
Value for Period 002 |
|
Period…… |
Value for Period nnn |
|
Period288 |
Value for Period 288 |
|
Sequence Number |
Row count |
|
Filtered by |
Local Area |
|
Grouped by |
None |
|
Ordered by |
None |

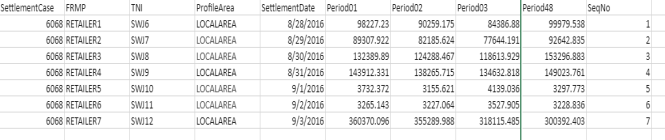

RM 43 example
